Need a fast, stable connection across large distances? Whether you’re bridging two buildings, connecting a remote site, or sharing your internet with nearby infrastructure — the new LHG Wi-Fi 6 series is built for the challenge. And here’s the best part: we’ve kept the same pricing as the previous generation. High performance, long range, and Wi-Fi 6 — all without breaking the budget.
The 802.11ax standard brings crucial improvements for long-distance wireless links — including better spectral efficiency, higher modulation rates (1024-QAM), and lower latency. That means stronger performance even in noisy environments and faster, more stable connections over a greater distance. Combined with WPA3 encryption and RouterOS v7, the LHG ax series is ready for the challenges of modern outdoor networking. Order yours today — and be ready too!

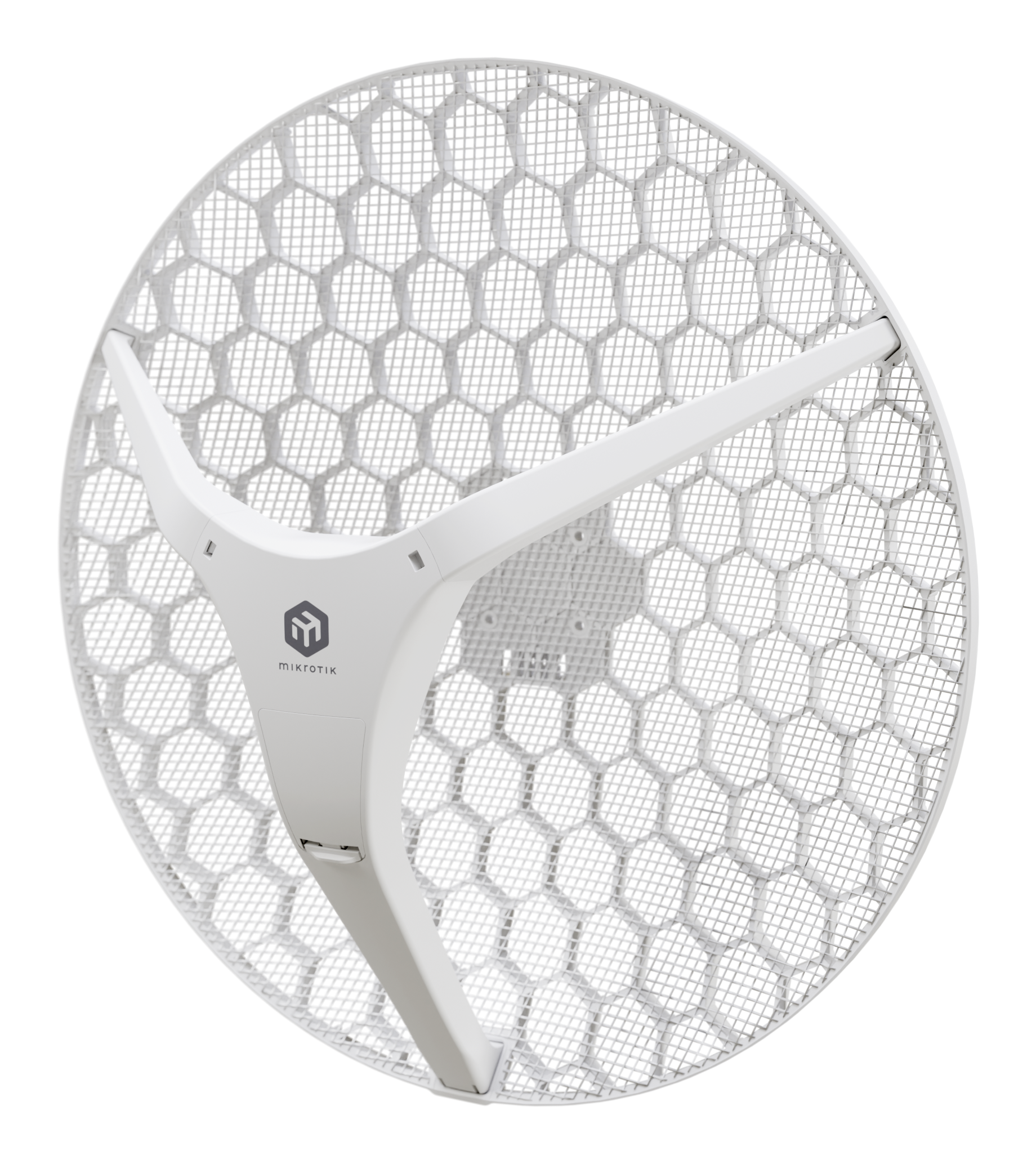

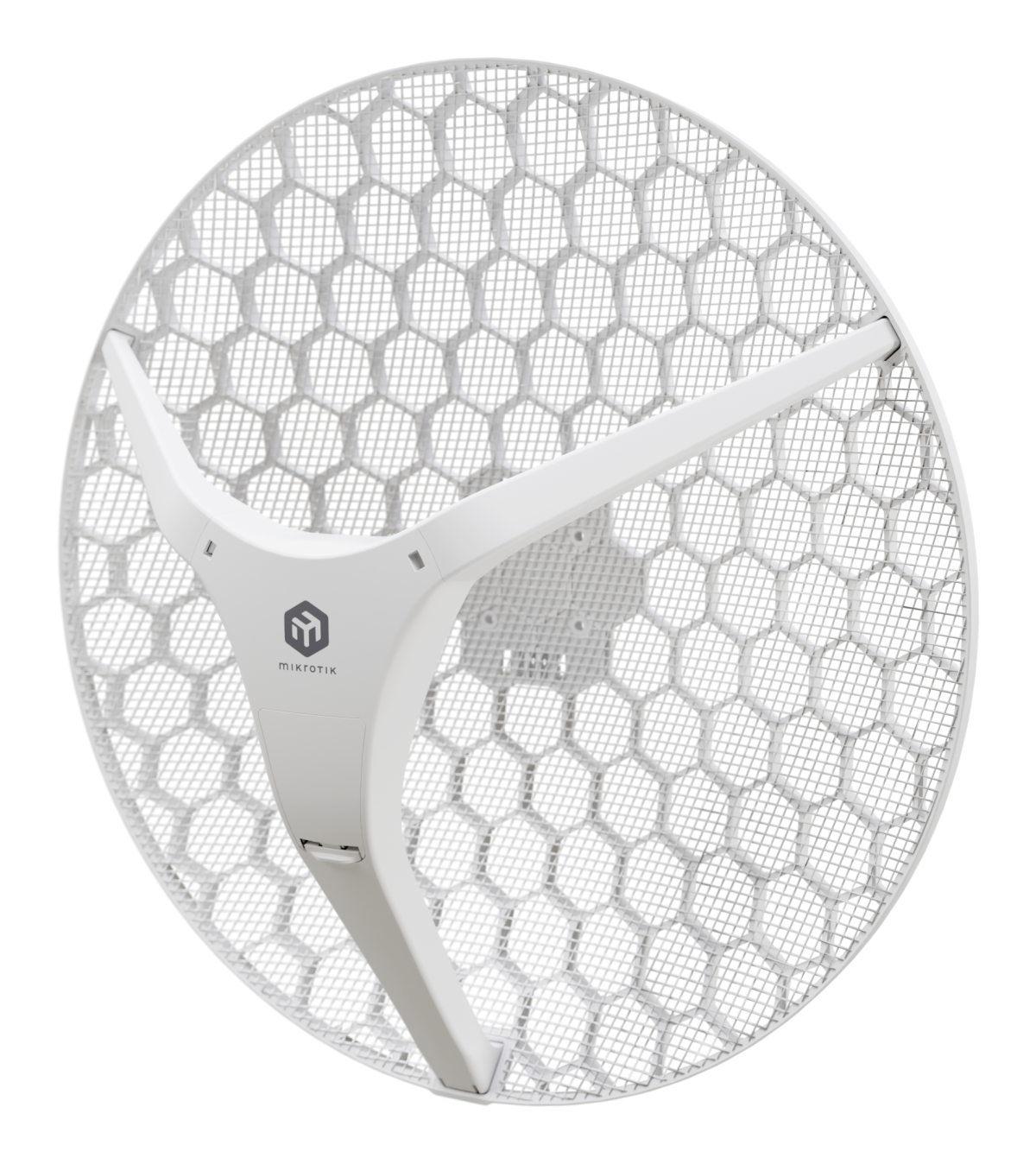

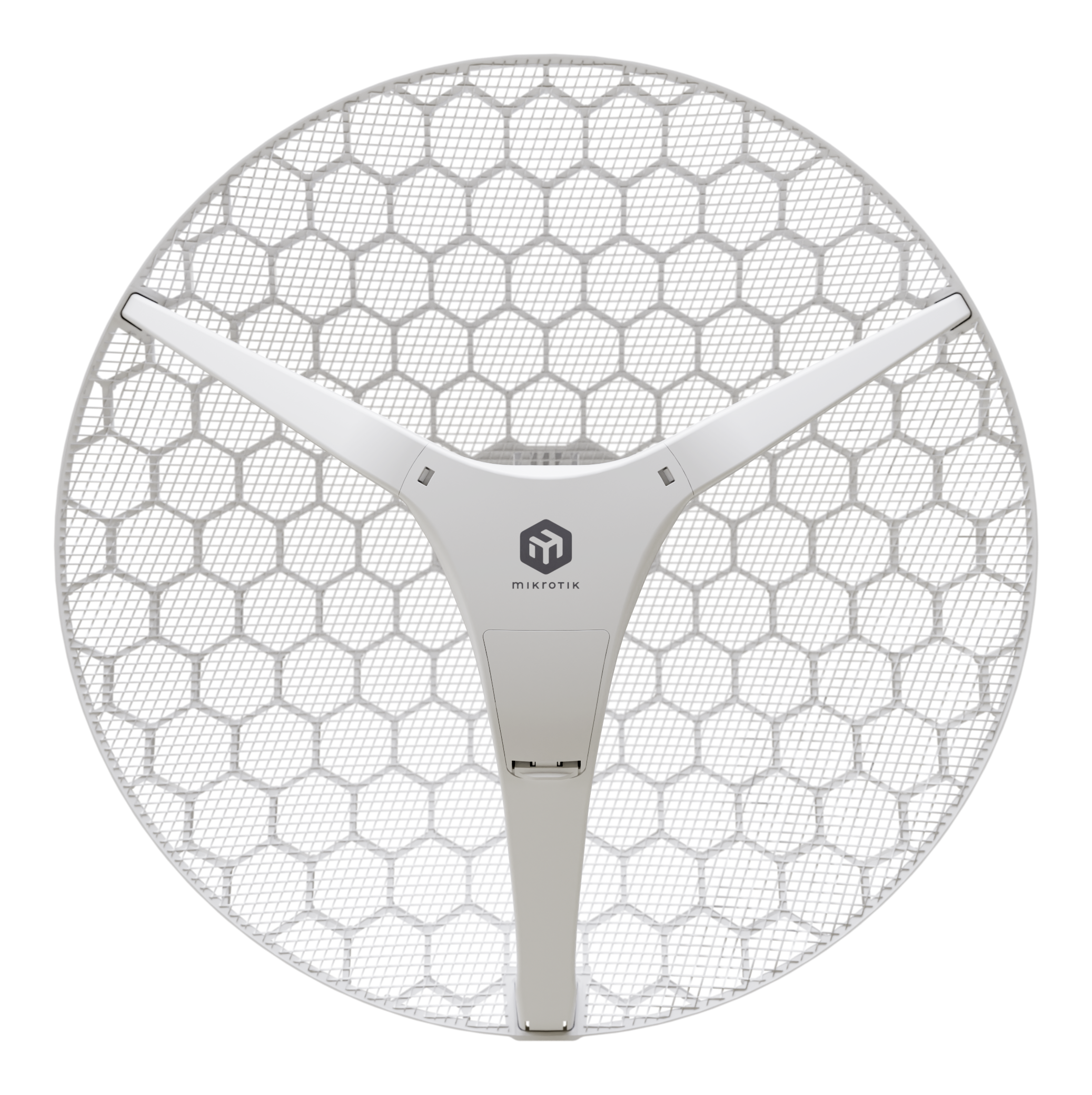

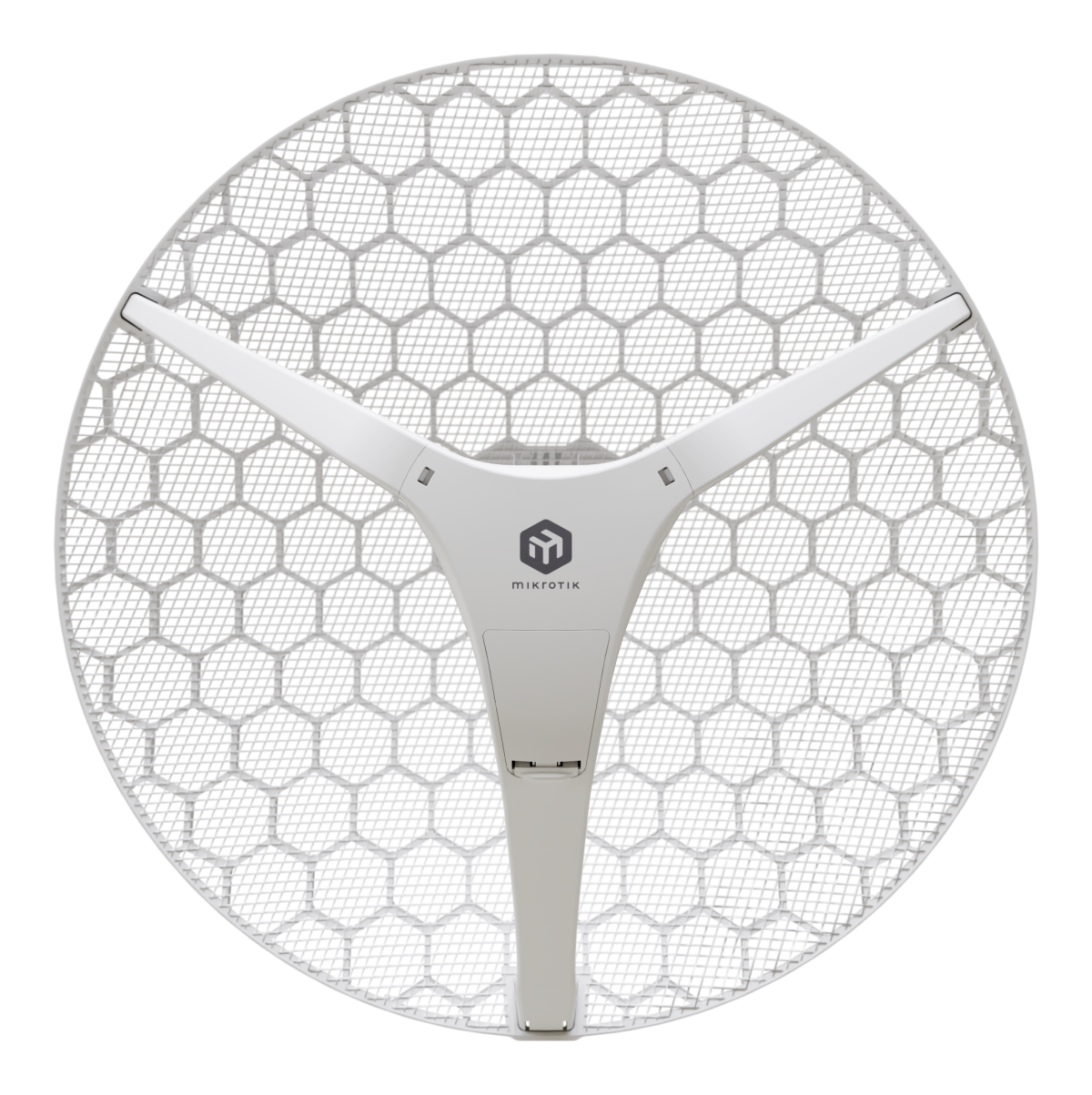

LHG XL 5 ax is an extra large long-range CPE with a 27 dBi antenna. Perfect for links up to 30 km in ideal conditions. Check related devices below for the regular version if you're working at a closer range!
| Product Code | LHG-5axD-XL |
| Architecture | ARM 32bit |
| CPU | IPQ-5010 (2 cores, 800 MHz) |
| Operating System | RouterOS v7 (License level 3) |
| RAM | 256 MB |
| Storage | 128 MB NAND |
| MTBF | Approximately 200,000 hours at 25°C |
| Tested Ambient Temperature | -40°C to 70°C |

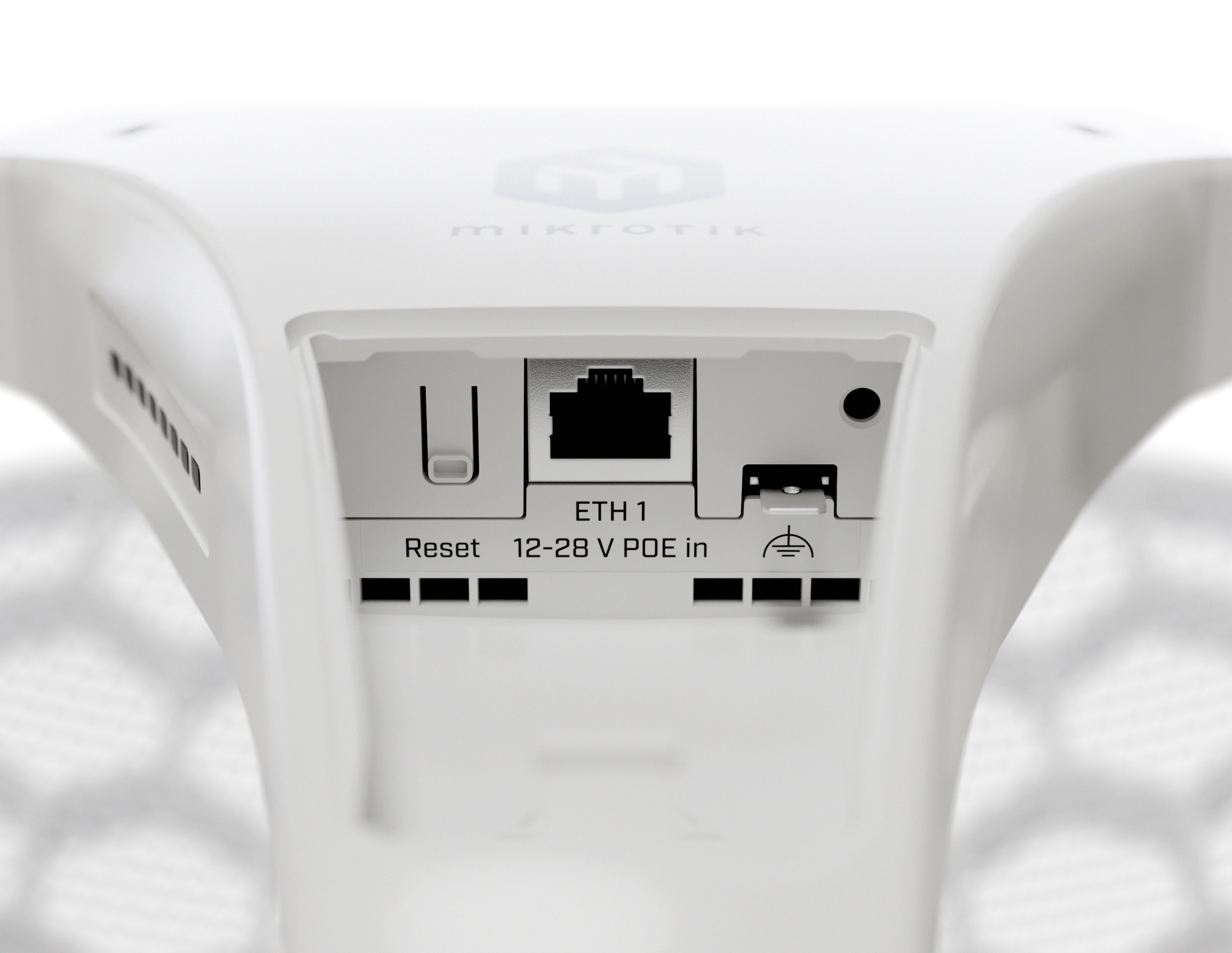

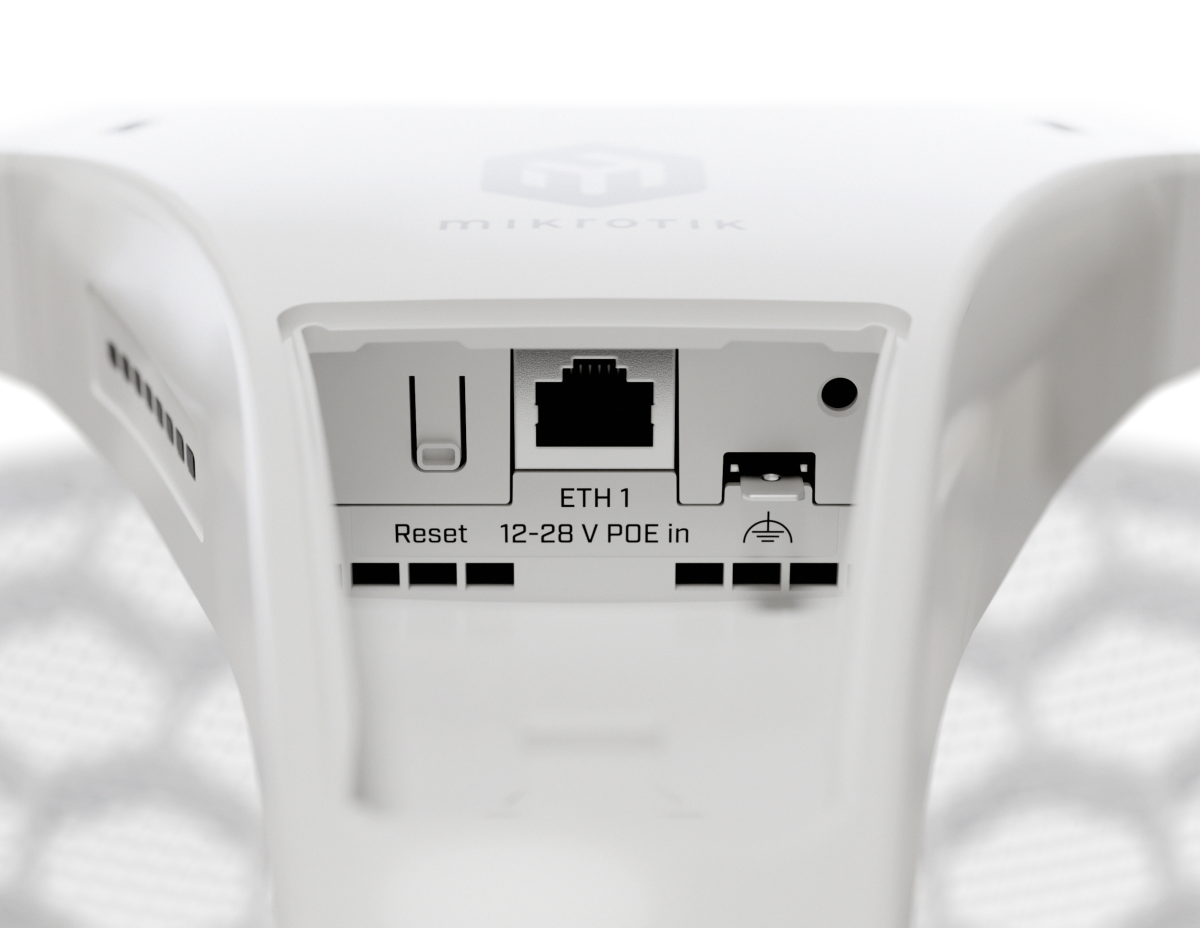

| Power Input | 1x Passive PoE (12–28 V DC) |
| Max Power Consumption | 5 W |
| Cooling Type | Passive |
| Wireless (5 GHz) | 1200 Mbit/s, 2x2 MIMO, 802.11a/n/ac/ax (Wi-Fi 6) |
| Antenna Gain (5 GHz) | 27 dBi |
| Wireless Chip | QCN-6102 |
| Ethernet Ports | 1 x 10/100/1000 Mbps |
| CPU Temperature Monitor | Yes |
| Certifications | CE, FCC, IC, EAC, ROHS |
| IP Rating | IP54 |
| Modulation | Transmit Power (dBm) | Receive Sensitivity (dBm) |
|---|---|---|
| 6 Mbit/s | 24 | -96 |
| 54 Mbit/s | 21 | -80 |
| MCS0 | 24 | -96 |
| MCS7 | 20 | -75 |
| MCS9 | 19 | -70 |
| MCS11 | 17 | -67 |
Uključeno
24V 0.38A power adapter
K-LHG kit
Gigabit PoE injector
Hose clamp 2
