Up to 300 m Long Range PoE Transmission The distance between IPCs and switch can reach maximum 300 meters.
4/8-Core Adaptive Power Supply with Less Power Loss 8-core power supply reduces the power loss on cables
6 KV Surge Protection to Improve Reliability in Harsh Environment The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
Design for Video Transmission VIP port ensures important data transmission when network congestion occurs.
| General | |
| Shell | Metal material |
| Net Weight | 1.80 kg (4.00 lb) |
| Gross Weight | 2.58 kg (5.69 lb) |
| Dimensions (W × H × D) | 335.0 mm × 44.5 mm × 175.8 mm (13.19'' × 1.75'' × 6.92'') |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100~240 VAC, 50/60 Hz, Max. 2.5 A |
| Max. Power Consumption | 150 W |
| Power Consumption in Idle | 20 W |
| Installation Mode | Desk-Mounted, Wall-Mounted |
| Surge Protection | 6 KV |
| Network Parameters | |

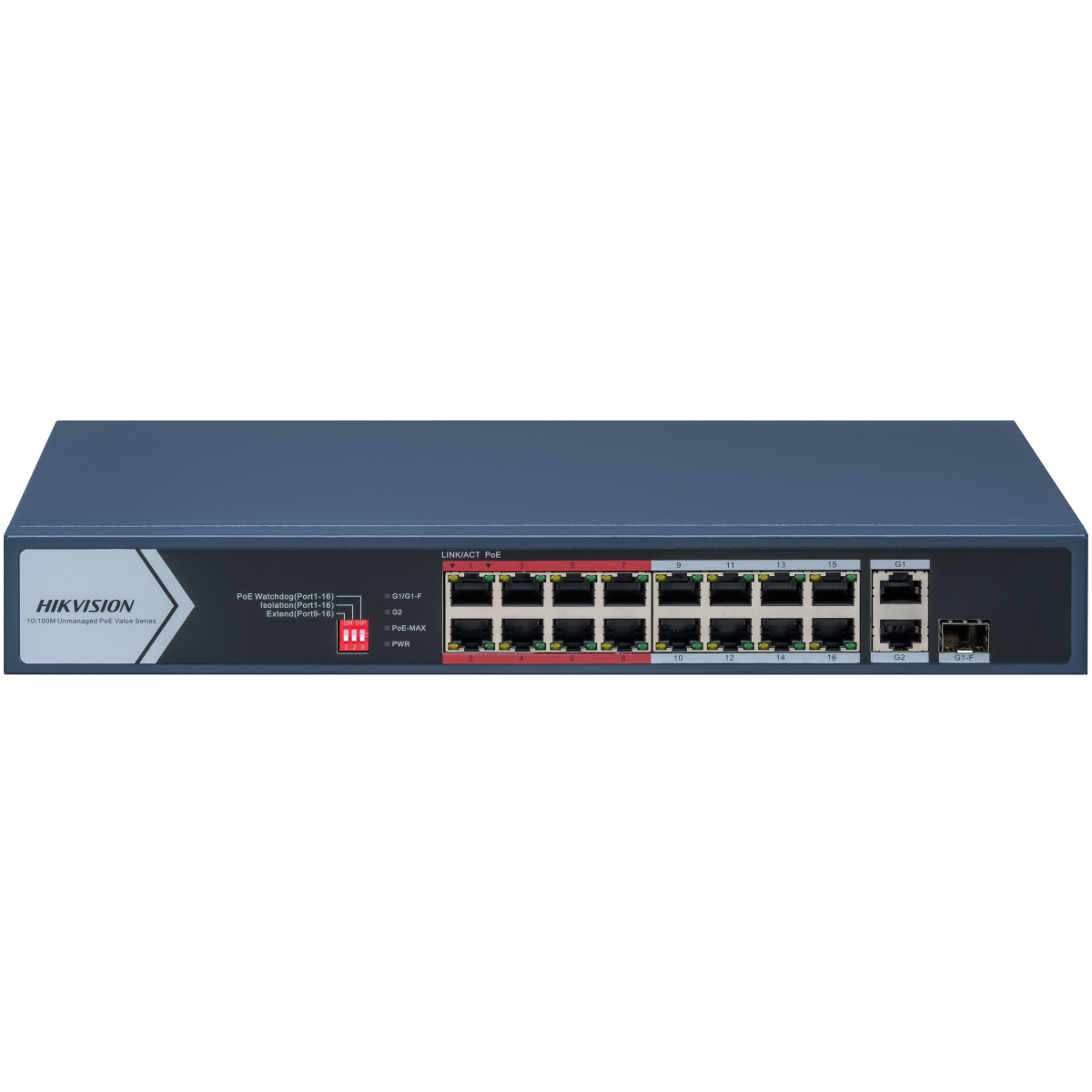

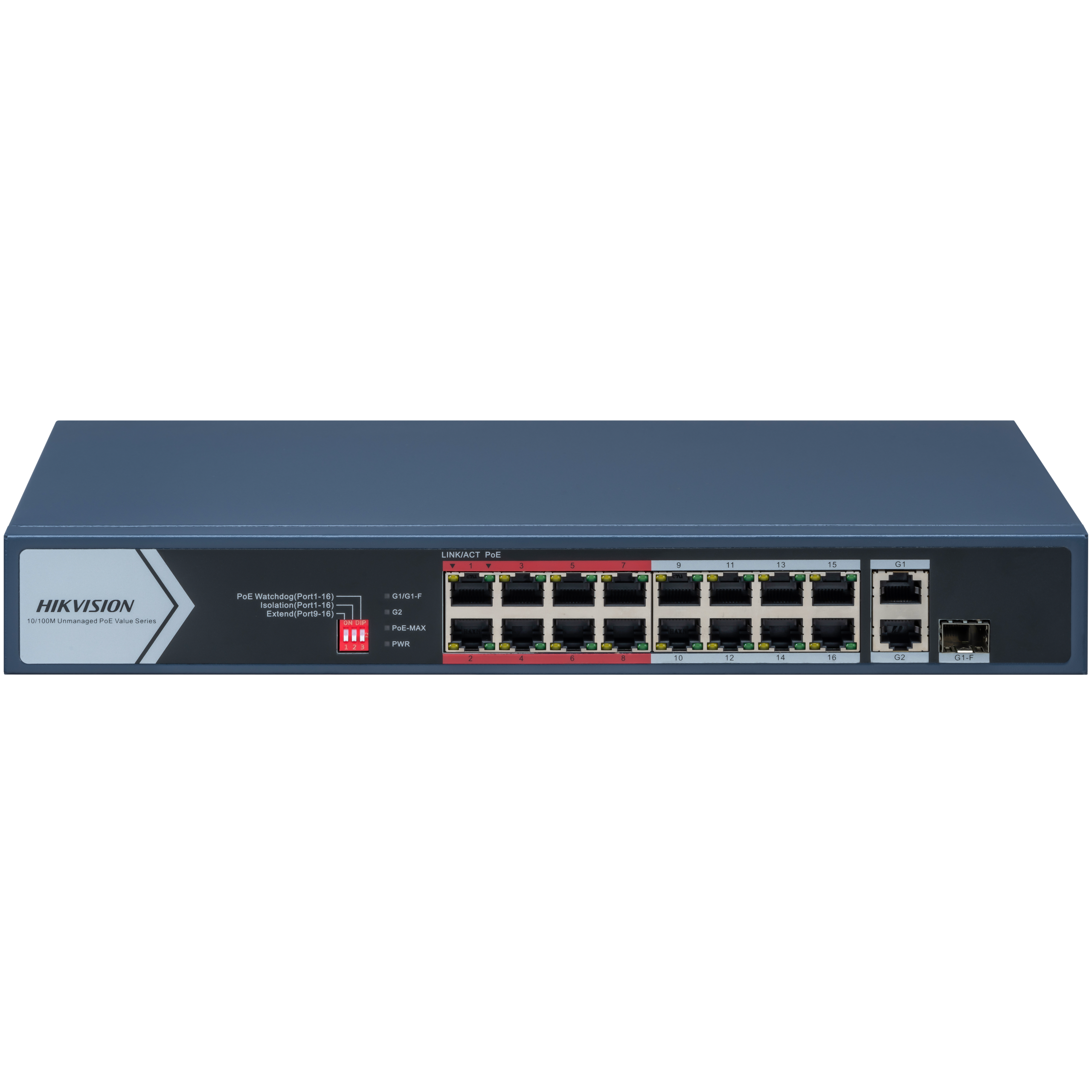

| Ports | 16 × 10/100 Mbps PoE ports, 1 × Gigabit RJ45 port, 1 × Gigabit combo |
| MAC Address Table | 8 K |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| Internal Cache | 4 Mbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Ports | Ports 1 to 16 |
| Max. Port Power | 30 W |
| PoE Power Budget | 130 W |
| Long Range Mode | Ports 9 to 16: up to 300 m (performance may vary by camera model or cable condition) |
| Approval | |
| EMC | FCC, CE-EMC, IC, RCM |
| Safety | UL, CB, CE-LVD |
| Chemistry | CE-RoHS, WEEE, REACH |
